MW/MP Wall-mounted cabinets
MW/MP Wall-mounted cabinets

♦ANSI/EIA RS-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7


Product Features

♦ Removable side panels,easy to install maintain

♦ Optional Metal cable management


♦ Adjustable depth of installation

♦ Comply with UL ROHS certifications


Details

Materials

SPCC cold rolled steel

Structure

Welded frame

Thickness(mm)Mounting profile 2.0,others 1.2
Static loading capacity(KG)70

Surface finish

Degreasing SilanizationElectrostatic spray

LockSmall round lock


Product  specification

Model No.

Description

MW/MP.6■■■.90■■

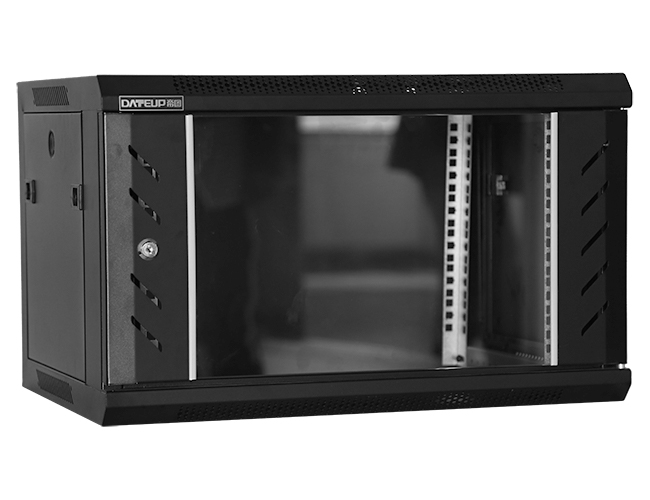

Toughened glass front door,door border without holes,small round lock

MW/MP.6■■■.91■■

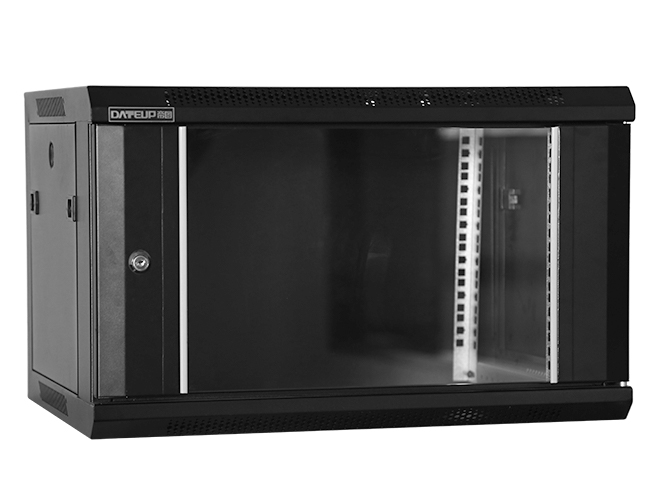

Toughened glass front door,with round hole vented arc door border,small round lock

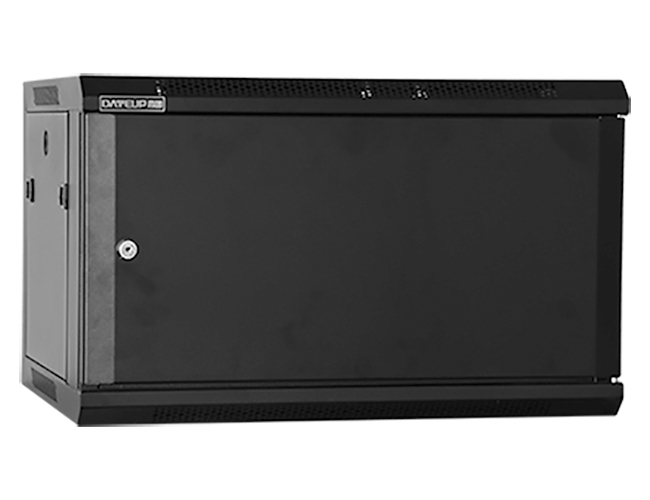

MW/MP.6■■■.92■■Plate steel door,small round lock
MW/MP.6■■■.93■■

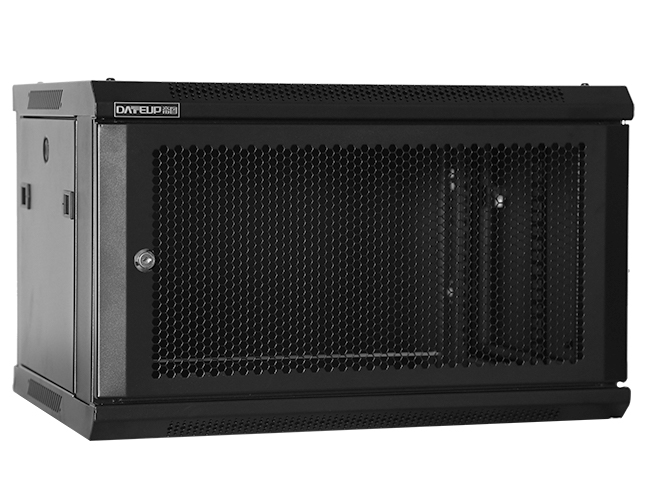

Hexagonal reticular high density vented plate door,small round lock

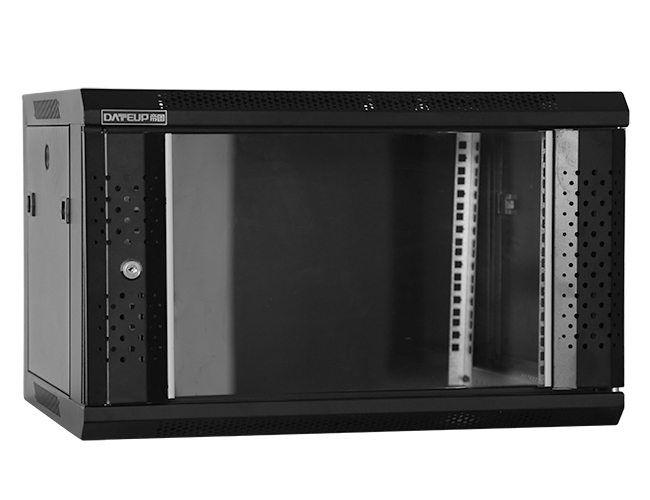

MW/MP.6■■■.94■■Toughened glass front door,with slanted slot door border,small round lock

Remarks:Firstdenotes depth,second & third ■■denotes capacity;fourth & fifth■■“00”denotes
Gray(RAL7035),“01”denotes Black(RAL9004).


MP&MP Series Cabinets Standard Configuration.pdf

MP Series Cabinet Specification Parameters.pdf
