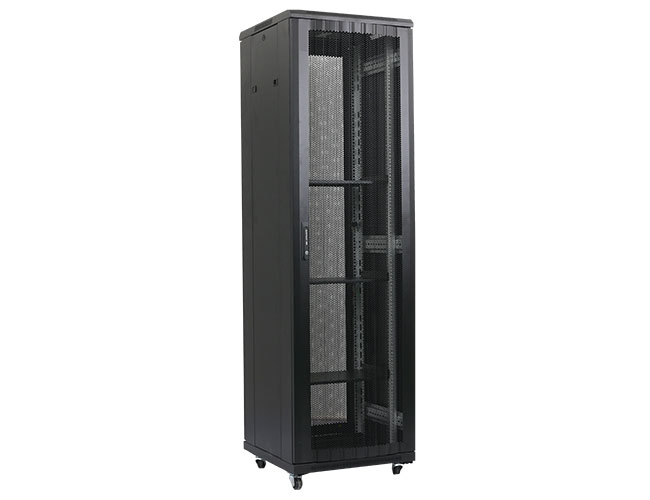

MSD Cabinets
MSD Cabinets

♦ ANSI/EIA RS-310-D

♦ IEC60297-2

♦ DIN41494:PART1

♦ DIN41494:PART7

♦ GB/T3047.2-92:ETSI

Product Features

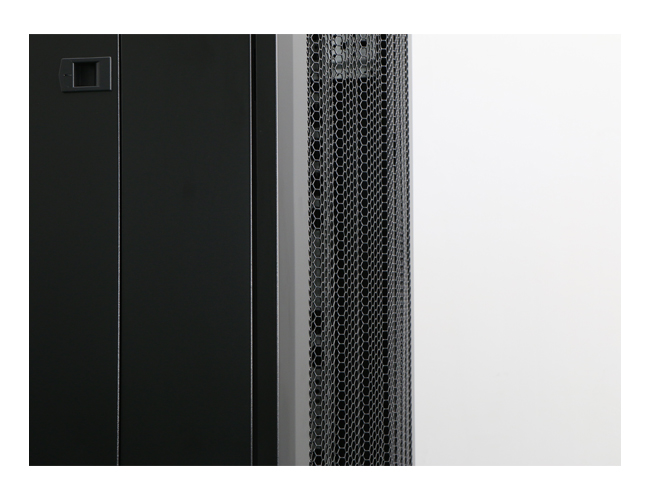

♦ Hexagonal reticular high density vented are door

♦ Hexagonal reticular high density vented plate door

Double-section optional

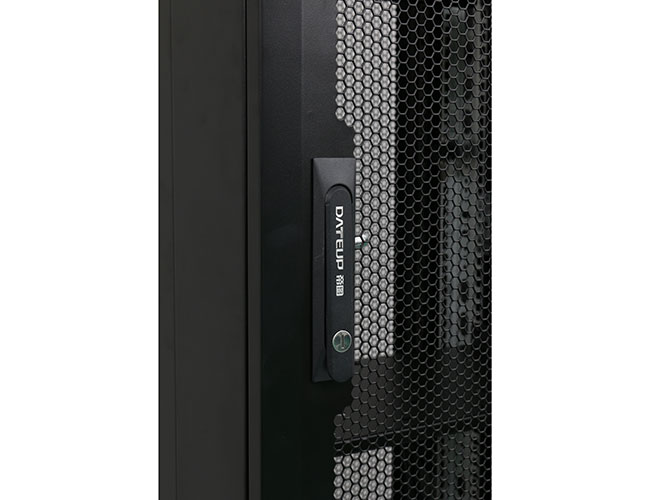

♦ DATEUP safety lock

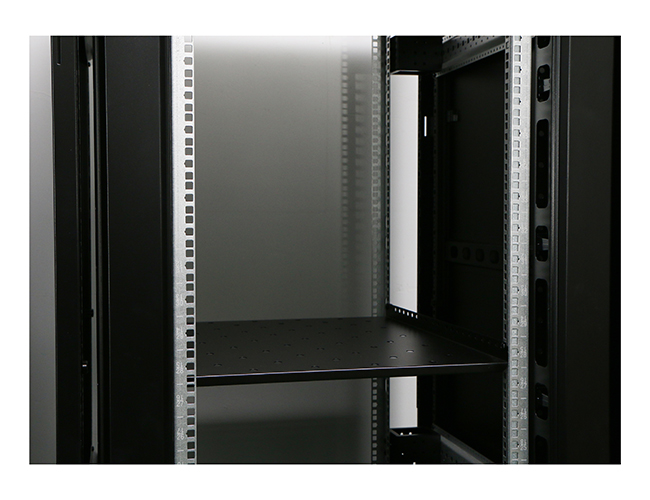

♦ Mounting profiles with laser U-mark

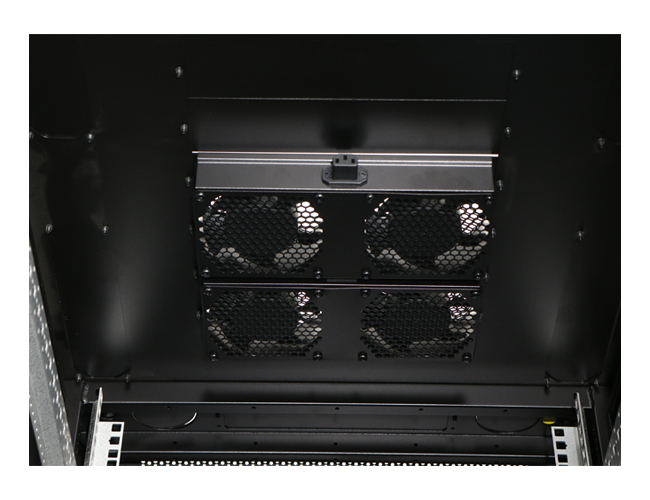

♦ Optional Fan unit easy installation

♦ High ventilation rate>75%

♦ High static loading capacity 1000KG

♦ Comply with UL ROHS certifications


Details

Materials

SPCC cold rolled steel

Frame

Disassembly

Front door

Vented arc door

Rear doorVented plate door
Ventilation rate>75%
Side panels

Removable side panels

Thickness(mm)

Mounting profile 2.0,Mounting angle 1.5,Others:1.2

Static loading capacity(KG)1000
Surface finishDegreasing SilanizationElectrostatic spray
Degree of ProtectionIP20


Product  specification

Model No.

Description

MSD.■■■■.9800

Hexagonal reticular high density vented are frond door,Hexagonal reticular high density vented plate rear door,Gray

MSD.■■■■.9801

Hexagonal reticular high density vented are frond door,Hexagonal reticular high density vented plate rear door,Black

MSD.■■■■.9600Hexagonal reticular high density vented  plate frond door,
Double-section Hexagonal reticular high density vented plate rear door,Gray
MSD.■■■■.9601

Hexagonal reticular high density vented  plate frond door,
Double-section Hexagonal reticular high density vented plate rear door,Black

Remarks:■■■■ Firstdenotes width,seconddenotes depth,third & fourthdenotes capacity.
